MK1-SS
Compact Tongue Interlock Safety Switch Stainless Steel

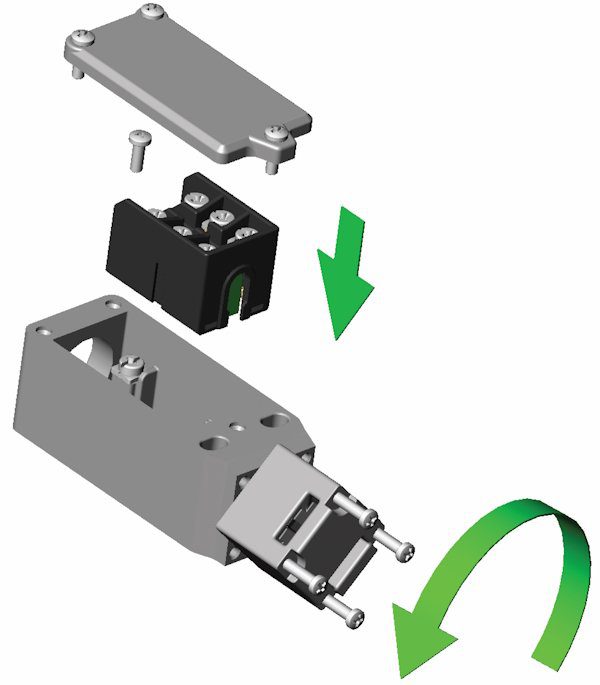

The compact body is only 30mm wide with industry standard 22mm fixing centres, ideal for restricted spaces. The rotatable head provides up to 8 actuator entry positions.
- Housing/Fixing
- Compact, 18mm fixing profile
- Contacts
- 2 N/C + 1 N/O
- Connection
- Wired or M12 Quick Connect
Information with regard to UL Standards
Electrical Rating Pilot Duty A300 240V.ac 3A. 6,000 cycles
Maximum Ambient Temperature +40 °C
Use 16 - 12AWG stranded copper insulated conductors rated 90ºC minimum. (75C. ampacity).
Terminal tightening torque 7ibs ins (0.8Nm)
Intended for same polarity use and one polymeric conduit connection
Not suitable for connection to a rigid metal conduit system
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 224001 | MK1-SS M20 2NC 1NO |
| 224001A | MK1-SS M20 2NC 1NO – std actuator |
| 224001F | MK1-SS M20 2NC 1NO – flat actuator |
| 224001PF | MK1-SS M20 2NC 1NO PF actuator |
| 224002 | MK1-SS ½NPT 2NC 1NO |
| 224002A | MK1-SS ½NPT 2NC 1NO – std actuator |
| 224002F | MK1-SS ½NPT 2NC 1NO – flat actuator |
| 224002PF | MK1-SS ½NPT 2NC 1NO PF actuator |
| 224003 | MK1-SS QC M12 8way 2NC 1NO |
| 224003A | MK1-SS QC M12 8way 2NC 1NO – std actuator |
| 224003F | MK1-SS QC M12 8way 2NC 1NO – flat actuator |
| 224003PF | MK1-SS QC M12 8way 2NC 1NO PF actuator |
