INCH-1
Compact Tongue Interlock Safety Switch
The compact body is only 25mm wide with 18mm fixing centres, ideal for restricted spaces. The rotatable head provides up to 8 actuator entry positions.
- Housing/Fixing
- Compact, 18mm fixing profile

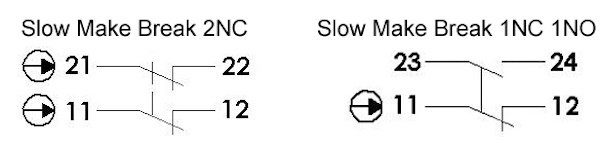

- Contacts
- 2 N/C or 1 N/C + 1 N/O
- Connection
- Wired or M12 Quick Connect
Information with regard to UL Standards
Electrical Rating Pilot Duty A300 240V.ac 3A. 6,000 cycles
Maximum Ambient Temperature +40 °C
Use 16 - 12AWG stranded copper insulated conductors rated 90ºC minimum. (75C. ampacity).
Terminal tightening torque 7ibs ins (0.8Nm)
Intended for same polarity use and one polymeric conduit connection
Not suitable for connection to a rigid metal conduit system
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 222001 | INCH-1 M16 2NC |
| 222001A | INCH-1 M16 2NC – std actuator |
| 222001F | INCH-1 M16 2NC – flat actuator |
| 222001PF | INCH-1 M16 2NC – PF actuator |
| 222002 | INCH-1 QC M12 4way 2NC |
| 222002A | INCH-1 QC M12 4way 2NC – std actuator |
| 222002F | INCH-1 QC M12 4way 2NC – flat actuator |
| 222002PF | INCH-1 QC M12 4way 2NC – PF actuator |
| 222003 | INCH-1 M16 1NC 1NO |
| 222003A | INCH-1 M16 1NC 1NO – std actuator |
| 222003F | INCH-1 M16 1NC 1NO – flat actuator |
| 222003PF | INCH-1 M16 1NC 1NO – PF actuator |
| 222004 | INCH-1 QC M12 4way 1NC 1NO |
| 222004A | INCH-1 QC M12 4way 1NC 1NO – std actuator |
| 222004F | INCH-1 QC M12 4way 1NC 1NO – flat actuator |
| 222004PF | INCH-1 QC M12 4way 1NC 1NO – PF actuator |
