M-CS-SKR

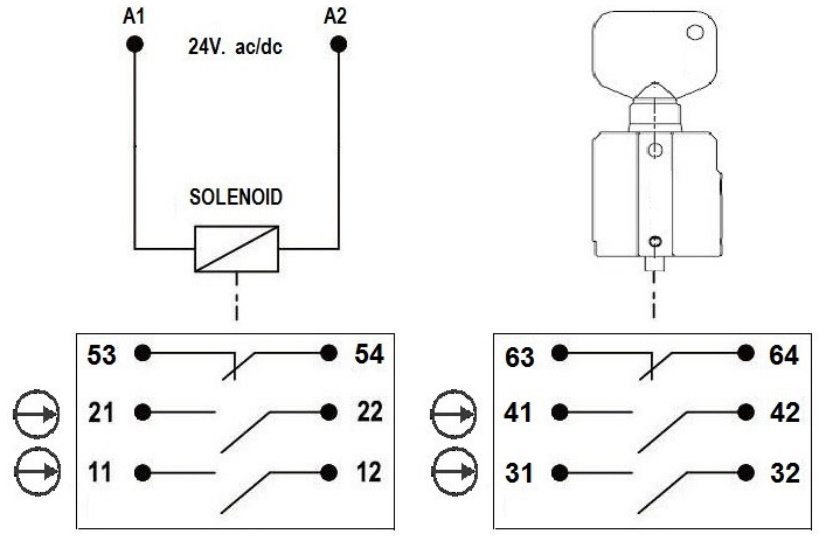

Panel Mount Trapped Key Control Isolation Switch with Solenoid Controlled Key Release
The M-CS-SKR is used for isolating an electrical control circuit. The key is solenoid controlled and requires an unlock signal before the key can be turned to the OFF position, allowing it to be removed and transferred to the next stage in the Trapped Key System. The M-CS-SKR-R works in the opposite way to the M-CS-SKR and does not have a key present during normal operation.
Information with regard to UL Standards
Type 1 enclosure. Maximum temperature 40°C. Use 16-28AWG stranded copper conductors (rated 90°C). Terminal Torque 6 lb ins. (0.7Nm). Intended for same polarity use. A300 Pilot Duty. 240V. 3A. PF 0.38 or greater, tested for 6,000 cycles endurance.
Note
Key sold separately
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| M-CS-SKR | Panel Mount Control Circuit Switch with Solenoid Key Release |
| M-CS-SKR-R | Panel Mount Control Circuit Switch with Solenoid Key Release – Reverse Key Function |
