KLM-Z-SKR-5ST
Guard Locking RFID Safety Switch with Control Functionality, Trapped Key

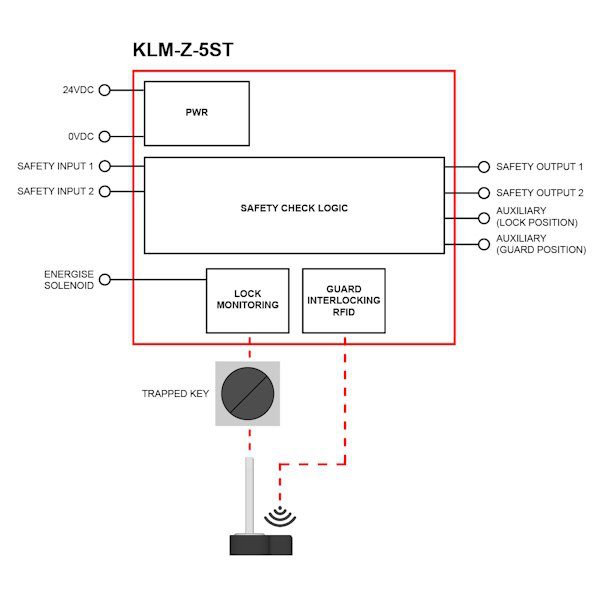

The KLM-Z-SKR-5ST is a Type 4 guard locking RFID safety switch with OSSD outputs, integrated machine control functionality and a coded personnel key.

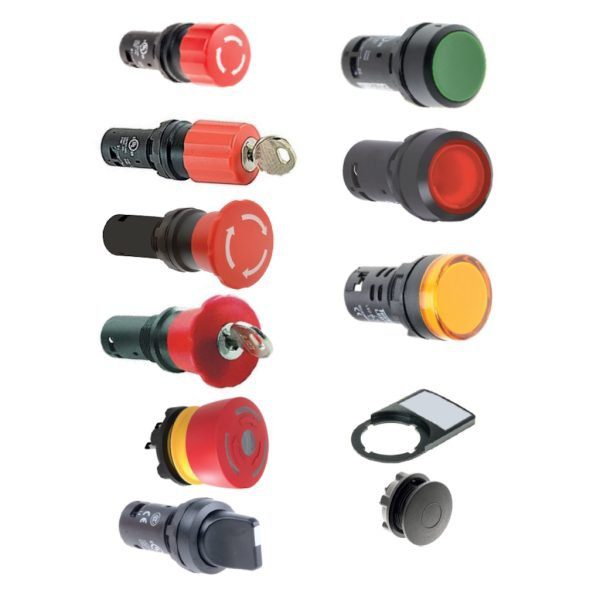

Designed for applications where guard locking, local machine control, and controlled access are required in one compact device, the KLM-Z-SKR-5ST can incorporate up to five 22mm control elements. This helps reduce the number of separate devices required at the gate, simplifies wiring, and provides operators with convenient control directly at the access point.
Information with regard to UL Standards
Type 1 enclosure. Use Class 2 power supply or equivalent. Maximum temperature 40°C. Use 16-28AWG copper conductors (rated 90°C). Terminal Torque 6 lb ins. (0.7Nm). Intended for same polarity use. Safety Circuits (11-12 & 21-22) 24V.dc 200mA max. Use one polymeric conduit connection. Not suitable for connection to rigid metal conduit. (Earth bonding terminal inside metal enclosures (if required). Use 16-12AWG conductors)
Note
Key sold seperetaly.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Descriere | Manual Release | Rear Release (Escape) | Connectivity |
|---|---|---|---|---|
| 457004 | KLM-Z-SKR-5ST M20, Side Release. | Yes | No | M20 |
| 457005 | KLM-Z-SKR-5ST 1/2" NPT, Side Release. | Yes | No | 1/2" NPT |
| 457006 | KLM-Z-SKR-5ST 8way QC-M12, Side Release. | Yes | No | 8way QC-M12 |
| 457304 | KLM-Z-SKR-5ST M20, No Manual Release. | No | No | M20 |
| 457305 | KLM-Z-SKR-5ST 1/2" NPT, No Manual Release. | No | No | 1/2" NPT |
| 457306 | KLM-Z-SKR-5ST 8way QC-M12, No Manual Release. | No | No | 8way QC-M12 |
