KL1-SS QC-M12 Guard Locking Safety Switch with M12 Quick Connect

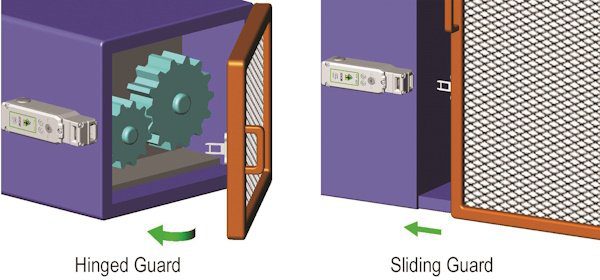

The KL1-SS QC-M12 guard locking safety interlock features a compact 316 stainless steel body, making it well suited for demanding industrial environments where strength, durability, and corrosion resistance are important. With a holding force of up to 2000N, the KL1-SS is designed to help keep medium to large guard doors securely closed until hazardous movement has stopped or access is safe. Its robust construction makes it ideal for applications where reliable guard locking is required, while the compact design allows it to be fitted to machinery where space may be limited.
Information with regard to UL Standards
Maximum temperature +40 °C
Terminal Torque e 6 lb ins. (0.7Nm)
Use 16-28AWG stranded copper conductors (rated 90°C).
Intended for same polarity use. A300 Pilot Duty. 240V. 3A
PF 0.38 or greater, tested for 6,000 cycles endurance
Use one polymeric conduit connection.
Not suitable for connection to rigid metal conduit
KL1-SS Earth bonding terminal inside enclosure if required, use 16-12AWG conductors).
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Descriere | Tensiune | Conduit Type | Actuator |
|---|---|---|---|---|
| 220003 | KL1-SS QC-M12 8-Way 24 V LED Only | 24 V | QC-M12 8-Way | No Actuator |
| 220003A | KL1-SS QC-M12 8-Way 24 V LED Only – Standard Actuator | 24 V | QC-M12 8-Way | A – Standard Actuator |
| 220003F | KL1-SS QC-M12 8-Way 24 V LED Only – Flat Actuator | 24 V | QC-M12 8-Way | F – Flat Actuator |
| 220003HF | KL1-SS QC-M12 8-Way 24 V LED Only – HF Actuator | 24 V | QC-M12 8-Way | HF – Metal Flexible Actuator |
| 220003HFH | KL1-SS QC-M12 8-Way 24 V LED Only – HFH Actuator | 24 V | QC-M12 8-Way | HFH – Stainless Steel Flexible Actuator |
| 220006 | KL1-SS QC-M12 8-Way 110 V LED Only | 110 V | QC-M12 8-Way | No Actuator |
| 220006A | KL1-SS QC-M12 8-Way 110 V LED Only – Standard Actuator | 110 V | QC-M12 8-Way | A – Standard Actuator |
| 220006F | KL1-SS QC-M12 8-Way 110 V LED Only – Flat Actuator | 110 V | QC-M12 8-Way | F – Flat Actuator |
| 220006HF | KL1-SS QC-M12 8-Way 110 V LED Only – HF Actuator | 110 V | QC-M12 8-Way | HF – Metal Flexible Actuator |
| 220006HFH | KL1-SS QC-M12 8-Way 110 V LED Only – HFH Actuator | 110 V | QC-M12 8-Way | HFH – Stainless Steel Flexible Actuator |
| 220009 | KL1-SS QC-M12 8-Way 230 V LED Only | 230 V | QC-M12 8-Way | No Actuator |
| 220009A | KL1-SS QC-M12 8-Way 230 V LED Only – Standard Actuator | 230 V | QC-M12 8-Way | A – Standard Actuator |
| 220009F | KL1-SS QC-M12 8-Way 230 V LED Only – Flat Actuator | 230 V | QC-M12 8-Way | F – Flat Actuator |
| 220009HF | KL1-SS QC-M12 8-Way 230 V LED Only – HF Actuator | 230 V | QC-M12 8-Way | HF – Metal Flexible Actuator |
| 220009HFH | KL1-SS QC-M12 8-Way 230 V LED Only – HFH Actuator | 230 V | QC-M12 8-Way | HFH – Stainless Steel Flexible Actuator |
