ESL-SS-L

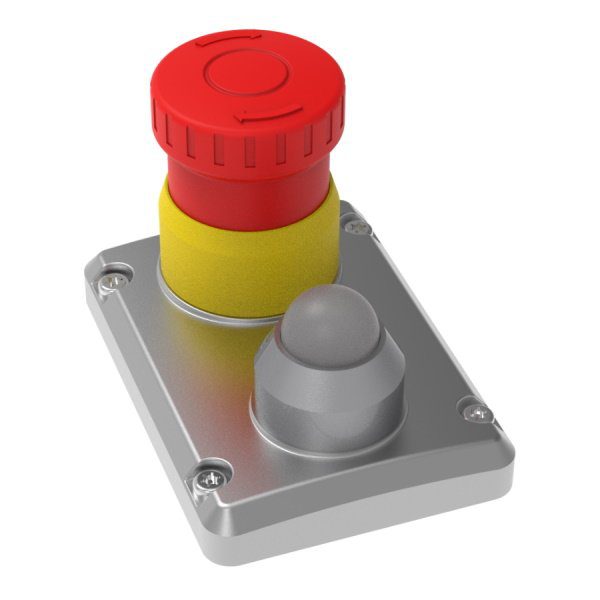

Emergency Stop Device with LED 4-Pole Contacts in 316 Stainless Steel
IDEM’s Heavy Duty Emergency Stop Switches are designed to provide robust Emergency Stop protection for exposed conveyors or machines. The IP69K enclosure protection is maintained by a double seal gasket and anti-rust, stainless steel internal screws. The Bi-colour LED indicates switch status from a distance. 3NC + 1NO contact configuration recommended for bi-colour operation.
- Body Material
- Rugged 316 Grade Stainless Steel
- Ingress Protection
- IP69K
- Contacts
- 4NC, 3NC + 1NO or 2NC + 2NO
- LED Voltage
- 24Vdc, 110Vac, 230Vac
- Conduits
- 3 x M20 or ½” NPT
Informații privind UL508
Type 1 Enclosure Contact Blocks A300 230V/3A 120V/6A Wire range: 16AWG – 12AWG Stranded Copper Conductors Terminal Torque 7lb/in (0.8Nm) 24V LED (if fitted) powered by LVLC or Class 2 only.
Notă importantă
When required by local regulations, please affix the supplied yellow emergency stop sticker.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Descriere | Connection Type | Contacte | LED Type | LED Voltage |
|---|---|---|---|---|---|
| 232017A | ESL-SS(L) M20 2NC 2NO LED 24V | M20 | 2NC 2NO | Standard LED – Steady Green / Flashing Red | 24V |
| 232017B | ESL-SS(L) M20 2NC 2NO LED 110V | M20 | 2NC 2NO | Standard LED – Steady Green / Flashing Red | 110V |
| 232017C | ESL-SS(L) M20 2NC 2NO LED 230V | M20 | 2NC 2NO | Standard LED – Steady Green / Flashing Red | 230V |
| 232018A | ESL-SS(L) ½”NPT 2NC 2NO LED 24V | ½”NPT | 2NC 2NO | Standard LED – Steady Green / Flashing Red | 24V |
| 232018B | ESL-SS(L) ½”NPT 2NC 2NO LED 110V | ½”NPT | 2NC 2NO | Standard LED – Steady Green / Flashing Red | 110V |
| 232018C | ESL-SS(L) ½”NPT 2NC 2NO LED 230V | ½”NPT | 2NC 2NO | Standard LED – Steady Green / Flashing Red | 230V |
| 232018-AS | ESL-SS(L) ½”NPT 2NC 2NO Steady LED 24V | ½”NPT | 2NC 2NO | Steady LED – Steady Green / Steady Red | 24V |
| 232018-BS | ESL-SS(L) ½”NPT 2NC 2NO Steady LED 110V | ½”NPT | 2NC 2NO | Steady LED – Steady Green / Steady Red | 110V |
| 232019A | ESL-SS(L) M20 3NC 1NO LED 24V | M20 | 3NC 1NO | Standard LED – Steady Green / Flashing Red | 24V |
| 232019B | ESL-SS(L) M20 3NC 1NO LED 110V | M20 | 3NC 1NO | Standard LED – Steady Green / Flashing Red | 110V |
| 232019C | ESL-SS(L) M20 3NC 1NO LED 230V | M20 | 3NC 1NO | Standard LED – Steady Green / Flashing Red | 230V |
| 232019-AS | ESL-SS(L) M20 3NC 1NO Steady LED 24V | M20 | 3NC 1NO | Steady LED – Steady Green / Steady Red | 24V |
| 232020A | ESL-SS(L) ½”NPT 3NC 1NO LED 24V | ½”NPT | 3NC 1NO | Standard LED – Steady Green / Flashing Red | 24V |
| 232020B | ESL-SS(L) ½”NPT 3NC 1NO LED 110V | ½”NPT | 3NC 1NO | Standard LED – Steady Green / Flashing Red | 110V |
| 232020C | ESL-SS(L) ½”NPT 3NC 1NO LED 230V | ½”NPT | 3NC 1NO | Standard LED – Steady Green / Flashing Red | 230V |
| 232020-AS | ESL-SS(L) ½”NPT 3NC 1NO Steady LED 24V | ½”NPT | 3NC 1NO | Steady LED – Steady Green / Steady Red | 24V |
| 232020-BS | ESL-SS(L) ½”NPT 3NC 1NO Steady LED 110V | ½”NPT | 3NC 1NO | Steady LED – Steady Green / Steady Red | 110V |
| 232021A | ESL-SS(L) M20 4NC LED 24V | M20 | 4NC | Standard LED – Steady Green / Flashing Red | 24V |
| 232021B | ESL-SS(L) M20 4NC LED 110V | M20 | 4NC | Standard LED – Steady Green / Flashing Red | 110V |
| 232021C | ESL-SS(L) M20 4NC LED 230V | M20 | 4NC | Standard LED – Steady Green / Flashing Red | 230V |
| 232022A | ESL-SS(L) ½”NPT 4NC LED 24V | ½”NPT | 4NC | Standard LED – Steady Green / Flashing Red | 24V |
| 232022B | ESL-SS(L) ½”NPT 4NC LED 110V | ½”NPT | 4NC | Standard LED – Steady Green / Flashing Red | 110V |
| 232022C | ESL-SS(L) ½”NPT 4NC LED 230V | ½”NPT | 4NC | Standard LED – Steady Green / Flashing Red | 230V |
