CPR

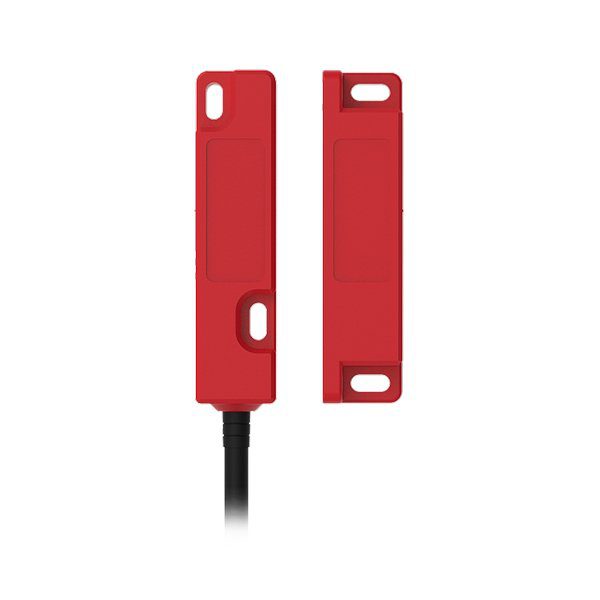

Magnetic Non-Contact Safety Interlock Switch
IDEMAG are non-contact, magnetic safety switches designed for use on machinery and equipment to ensure the safety of the operators and prevent accidents. The CPR has a slim line profile suitable for installation on narrow guard frames.
Industry Standard, Slim Line Housing
Configurație de contacte până la 2NC + 1NO
Distanță de acționare 12 mm
Conectare prin cablu precablat sau conector rapid M12
1A or (High Power 2A ac/dc) Switch Capacity
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
Glisați lateral pentru a vedea tot tabelul
| Part Number | Part Description | Safety | Auxiliary | Connection |
| Part Number | Part Description | Safety | Auxiliary | Connection |
| 113001 | CPR 2M ‘2NC’ | 2NC | 0 | 2M PRE-WIRED |
| 113002 | CPR 5M ‘2NC’ | 2NC | 0 | 5M PRE-WIRED |
| 113003 | CPR 10M ‘2NC’ | 2NC | 0 | 10M PRE-WIRED |
| 113004 | CPR QC M12 8way ‘2NC’ | 2NC | 0 | 250mm Leaded M12 8way |
| 113005 | CPR 2M ‘2NC 1NO’ | 2NC | 1NO | 2M PRE-WIRED |
| 113006 | CPR 5M ‘2NC 1NO’ | 2NC | 1NO | 5M PRE-WIRED |
| 113007 | CPR 10M ‘2NC 1NO’ | 2NC | 1NO | 10M PRE-WIRED |
| 113008 | CPR QC M12 8way ‘2NC 1NO’ | 2NC | 1NO | 250mm Leaded M12 8way |
| 113009 | CPR Heavy Duty 2M ‘1NC’ | 1NC | 0 | 2M PRE-WIRED |
| 113010 | CPR Heavy Duty 5M ‘1NC’ | 1NC | 0 | 5M PRE-WIRED |
| 113011 | CPR Heavy Duty 10M ‘1NC’ | 1NC | 0 | 10M PRE-WIRED |
| 113012 | CPR Heavy Duty QC M12 8way ‘1NC’ | 1NC | 0 | 250mm Leaded M12 8way |
| 113013 | CPR Heavy Duty 2M ‘1NC 1NO’ | 1NC | 1NO | 2M PRE-WIRED |
| 113014 | CPR Heavy Duty 5M ‘1NC 1NO’ | 1NC | 1NO | 5M PRE-WIRED |
| 113015 | CPR Heavy Duty 10M ‘1NC 1NO’ | 1NC | 1NO | 10M PRE-WIRED |
| 113016 | CPR Heavy Duty QC M12 8way ‘1NC 1NO’ | 1NC | 1NO | 250mm Leaded M12 8way |
