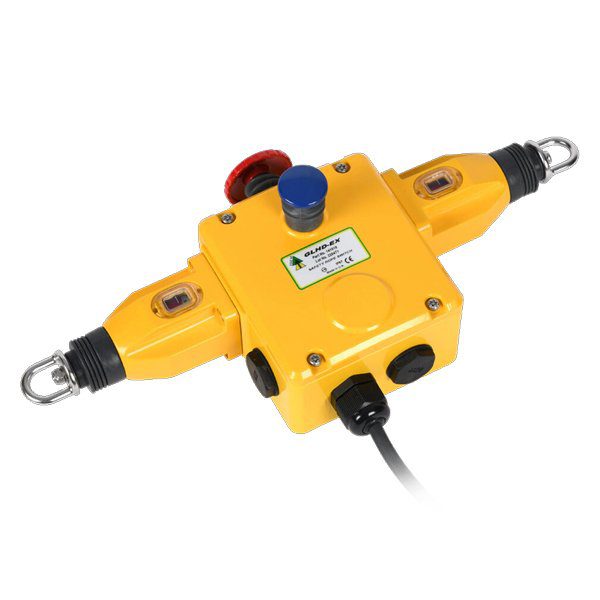

Safety Rope Pull Switch with Dual Head for Hazardous Areas (GLHD-Ex)
The GLHD-EX heavy duty safety rope pull switch has been designed to protect long conveyor lengths. The dual head is capable of protecting up to 250m and shorter rope spans up to 200m can be achieved using a single switch. This makes for a cost-effective solution, as it reduces electrical wiring runs and the total number of switches required.
- Body Material
- Die-Cast Metal; Painted Yellow
- Ingress Protection
- IP67
- Contacts
- 2-Pole or 4-Pole Ex Rated Contact Blocks
- Lungime cablu (1 întrerupător)
- 100 m stânga / 100 m dreapta
- Lungime cablu (3 întrerupătoare)
- 125 m stânga / 125 m dreapta
- Zones
- 1, 21, 2, 22
- Ex Marking
- Exd IIC T6 (-20 ≤ Ta ≤ +60C) Gb / Ex tb IIIC T85C (-20 ≤ Ta ≤ +60C) Db
Clasificare Ex (ATEX / IECEx)
ATEX Zones 1,21,2,22
II 2G Ex mb IIC T6 Gb
II 2D Ex mb IIIC T80C Db
Notă importantă
Comes with 3m of pre-wired cable (longer available on request).
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 141003 | GLHD-EX 3M ‘1NC 1NO’ c/w E-Stop |
| 141014 | GLHD-EX 3M ‘3NC 1NO’ c/w E-Stop |
| 141017 | GLHD-EX 3M ‘2NC’ c/w E-Stop |
| 141018 | GLHD-EX 3M ‘2NC 2NO’ c/w E-Stop |
